DS Technology’s automatic abrasive changing systems keep robotic sanding continuous and efficient. Designed for both sandpaper and sanding belts, the stations automatically replace worn abrasives for a fully automated sanding process. They minimize downtime, improve productivity, and ensure consistent surface quality across applications.
Model
Type
Media
Slots
Key Features
ASC4-RTH
Automatic
Sandpaper Ø75–150 mm
4 (exp.)
Automatic paper change; Hook & Loop system
ASC4-RWH
Automatic
Sandpaper Ø75–150 mm
4
Sensor alignment; multi-grit setup
ABSC4-RTH
Automatic
Belts 20–50 mm
4
Drawer loading; grit sequence change
Dtroll-E1
Intelligent
Belt roll 20–50 mm
Continuous
Auto feeding & cutting; sensor control

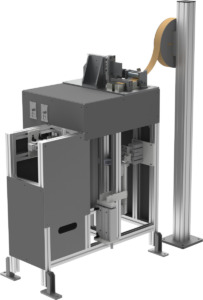

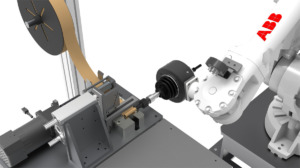

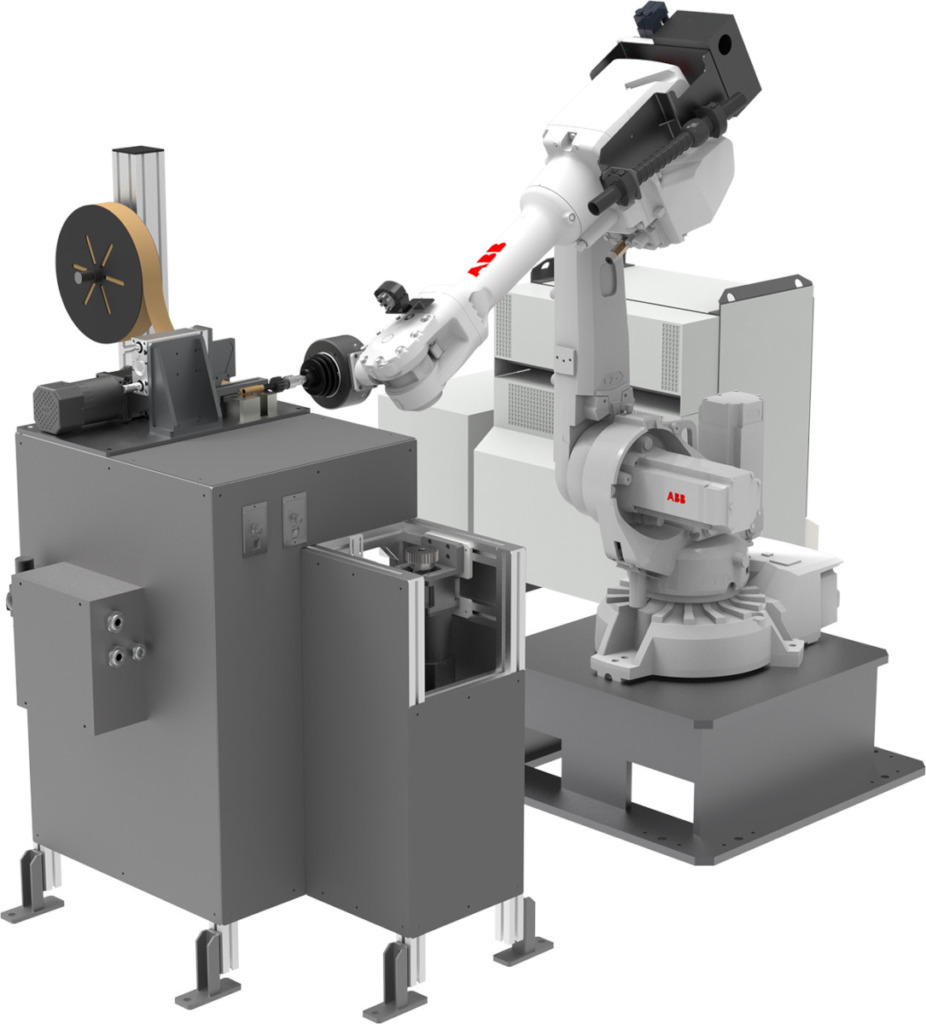

DTroll-E1 Automatic sanding belt replacement and feeding module
Weight
X

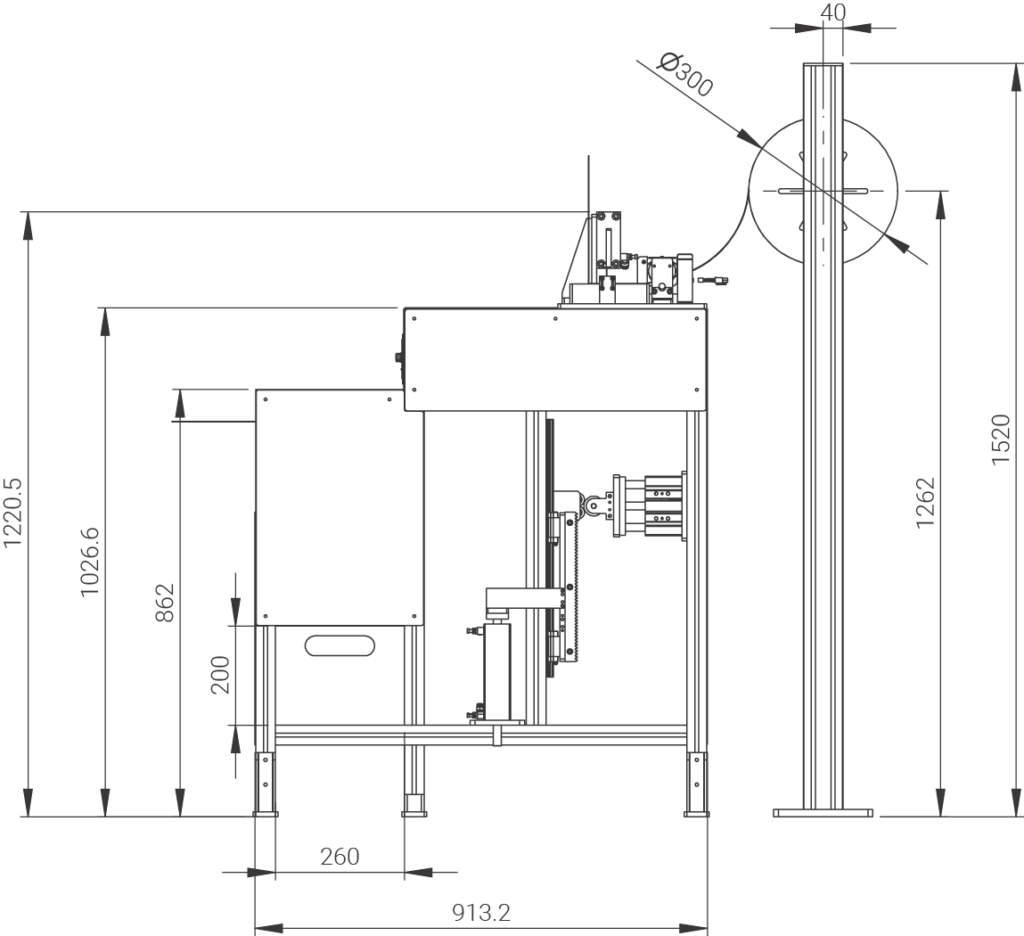

Dimensions
913 mm x 700 mm x 1520 mm
Automatic sanding belt feeding and cutting for continuous operation
Compact integration with RCEdge spindle and small sanding rolls
Sensor-based monitoring ensures reliable belt positioning and usage
Reduces downtime by eliminating manual belt changes

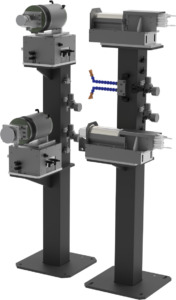

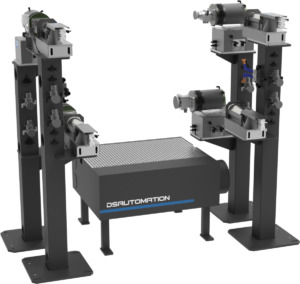

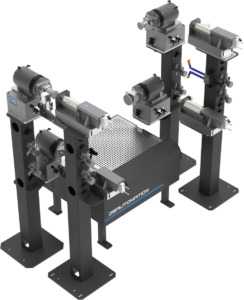

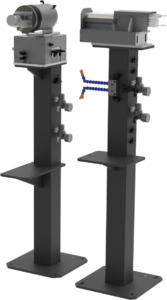

ASC4-RWH Automatic multi-size abrasive change system for station use
Operating Air Pressure
5–6 bar
Dimensions
4 stations：1620 × 815 × 1312 mm 2 stations：585 × 750 × 1312 mm 1 station：585 × 320 × 1312 mm
Fully automated sandpaper changeovers eliminate downtime and keep production continuous.
Multi-size capability handles up to four abrasive sizes/shapes (5 cm, 7.5 cm, 12.5 cm, 15 cm discs, triangular or rectangular pads) in a single system. Default abrasive storage capacity approx. 150 sheets.
One-to-one tool-to-abrasive matching guarantees correct grit, size, and shape for every process step.
Standard Hook & Loop fastening enables rapid, secure attachment without proprietary adapters.
Modular design allows fast reconfiguration for different tools and abrasive combinations without redesign or long setup times.

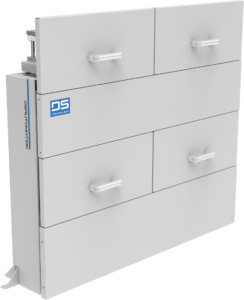

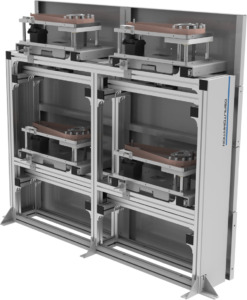

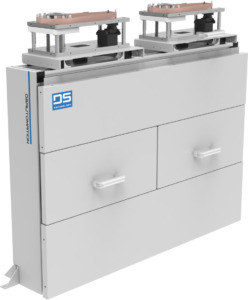

ABSC4-RTH Multi-belt changeover module compatible with BS800 belt sander
Operating Air Pressure
5–6 bar
Dimensions
1262 mm x 230 mm x 1137 mm
Integrated gripper system removes worn discs and installs new abrasives automatically
Dual-function station: supports both abrasive change and tool docking within one cell
Standard four-slot tray, expandable configuration for multi-grit or multi-tool setups
Hook & Loop system ensures quick, secure fastening of various abrasive shapes and sizes

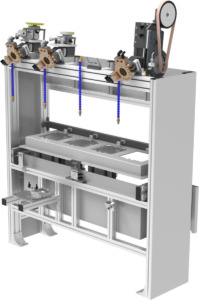

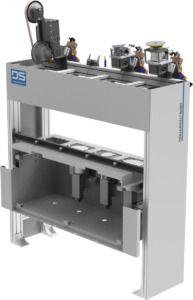

ASC4-RTH Disc Changer for station use
Operating Air Pressure
5–6 bar
Dimensions
1280 mm x 755 mm x 1377 mm
Integrated gripper system removes worn discs/sheets and installs new abrasives, full cycle completed without manual intervention
Hook & Loop (Velcro) system ensures quick and secure abrasive fastening.
Compatible with 5 cm, 7,5 cm, 12,5 cm, 15 cm round discs, plus triangular, rectangular and other standard shapes. Default abrasive storage capacity approx. 150 sheets
