Adaptability is made simple with pneumatic compliance for robotic surface finishing

Compliance devices ensure smooth, uninterrupted production by compensating for fixture misalignments, positioning errors, shifting parts and part tolerance variations.

Using passive, air-pressure-based compliance, these tools maintain consistent surface contact even on curved or irregular geometries. This significantly reduces programming effort and tight tolerance requirements.

The built-in compliance mechanism adapts to variations in part geometry and robot path, improving surface finish quality, extending abrasive life and minimizing setup time.

ModelComplianceCompliant strokeForce range (N)
LCZ100passivelinear 10 mm10-30
LCZ300passivelinear 28 mm40-100
LCZA300activelinear 28 mm40-100
LRCZ300passivelinear 28 mm, radial 5°40-100

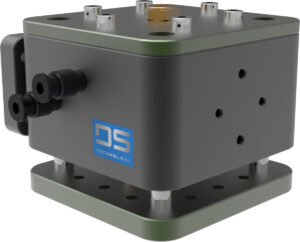

LCZ100.1282

LCZ100 Compact linear compliance module

Weight1,2 kg
Max EOT weight5 kg in facing downward
Compliant stroke10 mm
Compliance force 10-30 N
Compliant pressure2-5 bar
PowerX
Air supply≥ 6 bar
Mounting featureSide mount and robot wrist interface plates
Dimensions95 mm x 61 mm x 90 mm
  • Compact size especially for small robots and spaces
  • Compliance in Z axis
  • Gravity compensation?
  • Consistent contact force on complex or curved surfaces without active force control
  • Passive compliance enables compensation for dimensional and positioning errors
  • Reduced programming complexity – no need for exact path accuracy
  • Maintenance-friendly with simple routine inspections

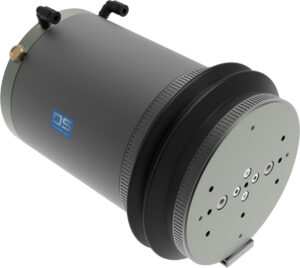

LCZ300.1261

LCZ300 Linear compliance module

Weight2,6 kg
Max EOT weight8 kg in facing downward
Compliant stroke28 mm
Compliance force 40-100 N
Compliant pressure2-5 bar
PowerX
Air connection4 mm
Mounting featureIn-line mount to robot wrist or table
Dimensions120 mm x 120 mm x 194 mm
  • Ideal for deburring, surface conditioning, edge rounding, fine grinding on cast or machined parts. Suited for high-variation environments.
  • Compliance in Z axis
  • Wider Compliance Range
  • Compact design: Weighing just 2.6 kg, the LCZ300 is easy to integrate even on smaller robot arms, without sacrificing performance.
  • Optimized for compliance-sensitive grinding, ensuring quality results and extended tool life
  • Maintains stable contact even with variations in workpiece shape or alignment.
  • Adjustable compliance force
  • Dual Air Port Control: enables flexible force management for vertical upward or downward orientations, ideal for complex setups.
  • For grinding tasks with basic processes, moderate precision and cost efficiency

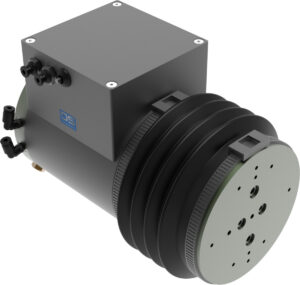

LCZA300.1262

LCZA300 Linear and radial compliance module compliance force system

Weight3,7 kg
Max EOT weight8 kg in facing downward
Compliant stroke28 mm
Compliance force 40-100 N
Compliant pressure2-5 bar
PowerX
Air connection4 mm
Mounting featureIn-line mount to robot wrist or table
Dimensions120 mm x 156 mm x 223 mm
  • Best suited for:
    • Deburring, surface finishing and edge rounding
    • Applications with varying part geometries and tolerances
    • Production environments requiring repeatable force control
    • Cells where simplified robot programming and reduced setup time are critical
  • Provides advanced compliance behavior in a compact, pneumatic package with minimal integration complexity
  • Active Compliance Force System (ACFS) ideal for sensitive or safety-critical operations
  • Flexible force configuration: dual pneumatic ports (extend/retract) allow fine-tuning of net contact force depending on the tool orientation (horizontal, vertical-up or vertical-down)
  • Compact and Lightweight: it integrates easily even with small or mid-sized robot arms
  • Built-in mechanical return to center ensures repeatable operation and stable behavior cycle after cycle, even in long production runs
  • Simplified robot path programming
  • For priorities like consistent processing, complex surfaces, conformity, and full automation control

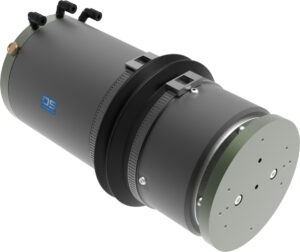

LRCZ300.1265

LRCZ300 Linear and radial compliance module compliance force system

Weight4,5 kg
Max EOT weight8 kg in facing downward
Compliant strokeDual 28 mm and radial 5°
Compliance force 40-100 N
Compliant pressure2-5 bar
Power500 W
Air connection4 mm
Mounting featureIn-line mount to robot wrist or table
Dimensions120 mm x 156 mm x 223 mm
  • Specifically designed for:
    • Applications where both axial and radial compliance are needed
    • Complex 3D surfaces, curved paths and workpieces with dimensional tolerances
    • Cases that require stable contact force without precise robot pathing
    • Environments where consistent quality, even with burr or shape variation, is critical
  • Wider Force Range with Pneumatic Control: users can fine-tune the net contact force based on tool orientation and process requirements.
  • Suitable for a variety of robot arms and fixtures. Designed with standard mounting and clear pneumatic interface.
  • Simplified robot programming and passive force compensation, robot motion doesn’t need to be perfect. This reduces setup time and cost.
  • The largest passive compliance device available for heavy duty
