DS Technology’s spindles and filing tools are engineered to cover the full spectrum of robotic finishing from ultra-fine micro-deburring to robust material removal.
Designed for both small and large robot cells, they combine high-speed precision with compliant motion that protects delicate surfaces and simplifies programming. This unique balance of accuracy, reliability and easy integration sets DS Technology’s tools apart from conventional solutions.
The result is consistent quality and long tool life across diverse applications.

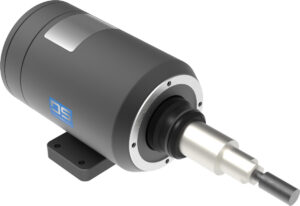

A robot arm or a stationary fixture. TCP (Tool Center Point) setup required
Tool holder
Ø 3 mm and Ø6 mm
Dimensions
202 mm x 80 mm x 134 mm
Ideal for deburring and edge finishing of machined or 3D-printed parts and applications requiring fine control, such as small aluminum, plastic or light steel components
Perfect for axial tool paths like in-line deburring, slot cleaning, chamfering
Protect delicate surfaces from overcutting with compliant motion
Reduces robot programming complexity with consistent center return
Lower contact force minimizes damage to thin or sensitive parts
Low compliance force range
Oil fog lubrication needed
Environments where robot speed and flexibility are essential
A robot arm or a stationary fixture, side or vertical orientation
Tool holder
Ø 3 mm and Ø6 mm
Dimensions
195 mm x 82 mm x 92 mm
Ideal for precision micro-deburring on small parts, light aluminum or plastic components, tight spaces or applications requiring high-speed but low-force tooling
Compact, ultra-high-speed spindle for fine deburring
Minimal compliance force for fine burr removal
High adaptability to different part sizes and burr geometries
Flexible integration into robot systems: the robot can hold either the tool or the part
Energy efficient air-powered operation with minimal lubrication needs

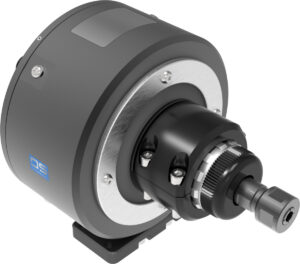

RC300S Compact spindle for delicate, precision deburring tasks
Compliant stroke
Radial 3,5°
Compliance force
13-32 N
Compliance pressure
2-5 bar
Spindle pressure
6 bar
Power
500 W
Speed
16000 RPM
Air consumption
8,5 l/s
Weight
3 kg
Tool holder
Ø 6 mm
Mounting
A robot arm or a stationary fixture, side or vertical orientation
Dimensions
198 mm x 130 mm x 138 mm
Option
High force compliance type available for large or hard materials
Ideal for standard-sized metal parts with medium burrs, cast or machined components needing consistent edge finishing, applications where speed and control must be balanced
Balanced performance for general-purpose robotic deburring
Medium compliance force
Compact size for versatile integration
Maintains good precision while allowing for moderate material removal

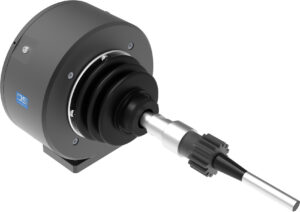

RCEdge300 Compact grinder for complex contours and tight spaces
Compliant stroke
Radial 5°
Compliance force
15-38 N
Compliance pressure
2-5 bar
Power
X
Speed
3200 RPM
Air consumption
7,5 l/s
Spindle pressure
6 bar
Weight
4 kg
Tool holder
Ø10
Mounting
A robot arm or a stationary fixture, side or vertical orientation
Dimensions
350 mm x 150 mm x 158 mm
Ideal for grinding in narrow spaces, inner corners and irregular contours on small to medium-sized workpieces
High grinding coverage (80–90%) in confined or complex geometries
Radial-only compliance optimized for contour-following in side-access grinding
Ability to mount side or vertical
Consistent contact pressure improves surface quality and extends abrasive tool life
Compact, lightweight design fits smaller robot arms and space-limited installations
Supports both targeted grinding in confined areas and general finishing applications

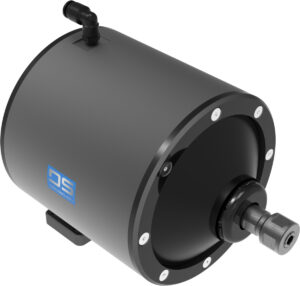

LRC300S Compact rotary deburring spindle with dual compliance
Compliant stroke
Axial 5 mm, radial 5°
Compliance force
13-32 N
Compliance pressure
2-5 bar
Spindle pressure
6 bar
Power
500 W
Speed
16000 RPM
Air consumption
3,2 l/s
Weight
4,2 kg
Tool holder
Ø 6 mm
Mounting
A robot arm or a stationary fixture, side or vertical orientation
Dimensions
198 mm x 130 mm x 138 mm
Ideal for chamfering and edge finishing on cast, stamped or machined parts, small to medium-sized workpieces with irregular surfaces or tight geometries, smaller robot arms
Precise force control
High-quality edge finish even on complex contours
Consistent contact pressure improves surface quality and tool life
Quick-connect air fittings for easy integration
Efficient air-powered operation
Supports both axial and side approach deburring
Axial and radial compliance can be independently controlled without interfering with each other.

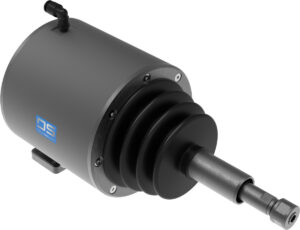

LRC300M Mid-size rotary deburring spindle with dual-axis compliance for higher force applications
Compliant stroke
Axial 5 mm, radial 5°
Compliance force
15-38 N
Spindle pressure
6 bar
Power
500 W
Speed
16000 RPM
Air consumption
1,8 l/s
Weight
4,4 kg
Tool holder
Ø 6 mm
Mounting
A robot arm or a stationary fixture, side or vertical orientation. TCP (Tool Center Point) calibration support for accurate path teaching and reliable automation
Dimensions
296 mm x 130 mm x 138 mm
Dual compliance enables consistent surface contact without complex robot programming
Compact design for integration of medium-payload robot arms
High-speed pneumatic spindle ensures efficient material removal
Designed for safe, repeatable, and low-maintenance operation in demanding environments
Axial and radial compliance can be independently controlled without interfering with each other

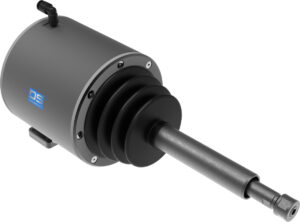

LRC300L High-power rotary spindle for aggressive burr removal on large parts
Compliant stroke
Axial 5 mm, radial 5°
Compliance force
12-30 N
Compliance pressure
2-5 bar
Spindle pressure
6 bar
Power
500 W
Air consumption
8,5 l/s
Tool holder
Ø 6 mm
Weight
4,7 kg
Mounting
A robot arm or a stationary fixture, side or vertical orientation. Screw and pin holes on the mounting plate enable easy installation TCP (Tool Center Point) setup required
Dimensions
355 mm x 130 mm x 138 mm
Ideal for applications requiring long reach and increased material removal capacity, heavy-duty deburring tasks on cast, forged or machined parts where burr size and shape vary or where deeper compliance stroke is needed for surface following
Axial and radial compliance can be independently controlled without interfering with each other
Stable and smooth cutting with minimal programming adjustments
Pneumatic operation ensures low maintenance and energy efficiency

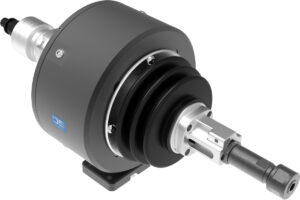

RC100F Compact radial deburring spindle with floating compliance
Compliant stroke
Radial 3,5°
Compliance force
21-53 N
Compliance pressure
2-5 bar
Spindle pressure
6 bar
Power
X W
Speed
5000 RPM
Air consumption
2,8 l/s
Weight
2,6 kg
Tool holder
Ø 6 mm
Mounting
A robot arm or a stationary fixture. Tool Center Point (TCP) calibration-ready
Dimensions
300 m x 130 mm x 138 mm
Option
High force compliance type available for large or hard materials
Ideal for deburring of small-to-medium aluminum, cast or machined parts, applications where lateral surface finishing is required, use cases with tight tolerance demands, varying burr size or light material stock removal
Suitable for tight-space cells or lighter robot arms
Dual pneumatic inputs: 10 mm (spindle) and 4 mm (compliance) connectors for independent control
Contact force is pneumatically controlled and adjustable
